Rotating Roller Design

We can provide two specially designed flat die pellet mills for you. The first model consists of rotating rollers and a stationary die - that is our rotating roller small pellet mill. The second model consists of  stationary roller  with a rotating roller. The rotating roller design of fixed die can make the die’s service life greater—2,000 hours—than the formerly mentioned model. Besides, it is capable of producing long wood pellets, including those over 3 cm in length.

Video of how to install and operate after buying pellet machine



Rotating Roller Small Pellet Mill Applications

A newly designed fixed die type pellet press, the rotating roller small pellet mill is specialized in the production of industrial biomass fuel. It is able to make pellets from diverse wood materials such as sawdust, straw, chaff, bamboo shavings, peanut shells, bagasse and alfalfa.

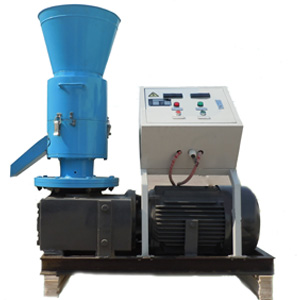

Rotating Roller Small Pellet Mill Introduction

Technical Parameters

Model: ZLSP300 R-Type
Capacity: 250-350 kg/h
Motor Power: 22 kW
Packed Dimensions: 1300*600*1400 mm; Weight: 575 kg
Final Pellet Diameter: 6-12 mm
Material of Flat Die & Roller: alloyed steel
Life of Flat Die & Roller: min 800 hours
QA: the usable life of the motor and gear box is 1 year; that of the upper body and box of the main shaft is five
QA, others: 1 year except aforementioned parts

Model: ZLSP400 R-Type
Capacity: 350-450 kg/h
Motor Power: 30 kW
Packed Dimensions: 1400*700*1600; Weight: 810kg
Final Pellet Diameter: 6-12 mm
Material of Flat Die & Roller: alloyed steel
Life of Flat Die & Roller: min 800 hours
QA: the usable life of the motor and gear box is 1 year; that of the upper body and box of the main shaft is five
QA, others: 1 year except aforementioned parts

Performance Characteristics

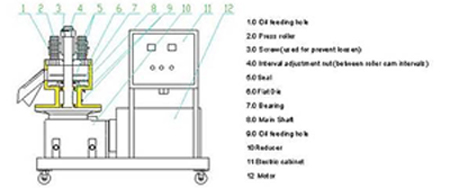

Structure

Special Features

Made by high quality alloy steel: our gears are made of high quality case-hardened nitrogen-alloyed steel. It not only imparts the durability, but also strengthens the efficiency, reduces noise, increases the machine's weight/force bearing capacity and lowers the temperatures in the gear box.
Better durability: the main shaft is designed to endure heavy loads and bear strong axial forces, thus the durability is increased.
Better rollers: utilizes large-diameter roller to increase the pelletization rate, pellet uniformity and pellet strength.
Longer service life: rollers and dies are constructed with a wear-resistant surface. Besides, both sides of the die can be used, thus its usable life is lengthened.
Dust-proof bearing: all bearings are sealed to prevent the accumulation of dust.
Multiple diamter choice: users are able to decide making pellets of different diameters at the range of 6-12mm.

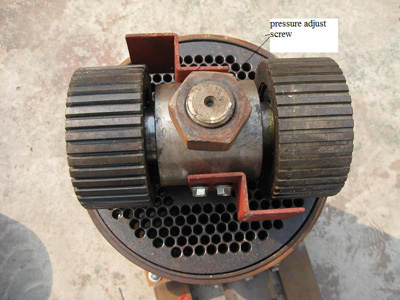

How to  Install Press Roller and Flat Die.



Main Spare Parts for Rotating Roller Small Pellet Mills

All bearings adopt sealing structure in order to prevent dirt into effectively, improve the working environment of bearings and prolong bearings life.

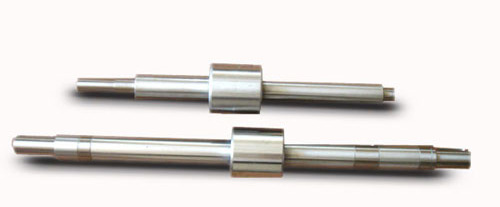

The spindle is made from high quality stainless steel, which can prolong the service life.
